When developing software, you’ll sooner or later be confronted with the notion of Tests. In the .NET landscape we have plenty of tools at our disposal to help us test our code. In this post I’d like to introduce ScenarioTests. A new project that aims to make testing in .NET better.
Before talking about what ScenarioTests are, lets first describe a common approach for testing our code currently. Let’s imagine that we’re implementing a Stack datatype and we now want to prove that we can Push something on our stack:
[Fact]
void Push_IncreasesStackCount(){
// arrange
var subject = new Stack<int>(); // Subject here is the what we're testing against
Assert.Equal(0, subject.Count); // Convenient but bad... read on
// act
subject.Push(1); // We push something on the stack
// assert
Assert.Equal(1, subject.Count);
}
This follows a typical arrange/act/assert pattern wherein our arrange step we can set up a scenario, we then act on that scenario in our act step and finally we assert that our state is as we were expecting. We actually did something else. We had an initial assertion in our arrange step to ensure that we started out with an initial count of 0.
Doing multiple assertions- or rather, asserting different and subsequently evolving cases within a single test is typically discouraged. The problem with this approach is that If my initial count was not 0 but let’s say NULL (since nothing was yet pushed to the Stack) then my entire test would have failed including the Assertion that indeed pushing in 1 item would set the Stack count to 1. Instead, I should have written 2 test methods:
[Fact]
void StartsWithACountOf0() {
// act
var subject = new Stack<int>();
// assert
Assert.Equal(0, subject.Count);
}
[Fact]
void Push_IncreasesStackCount(){
// arrange
var subject = new Stack<int>();
// act
subject.Push(1);
// assert
Assert.Equal(1, subject.Count);
}
Okay, that’s more code to write but at least we’re clean now. Lets add another test case:
[Fact]
void StartsWithASizeOf0() {
// act
var subject = new Stack<int>();
// assert
Assert.Equal(0, subject.Size);
}
[Fact]
void Push_IncreasesStackSize(){
// arrange
var subject = new Stack<int>();
// act
subject.Push(1);
// assert
Assert.Equal(1, subject.Size);
}
[Fact]
void Pop_StackWith1Item_DecreasesStackSize(){
// arrange
var subject = new Stack<int>();
subject.Push(1);
// act
subject.Pop();
// assert
Assert.Equal(0, subject.Size);
}
This is getting repetitive. Each additional test seems to be repeating what the previous test was doing while building on top of it. This gets worse when working with end-to-end testing where you actually test the behavior of a system:
public void Ensure_That_Item_Was_Ordered_For_New_User() {
// Arrange
var server = CreateTestServer();
var productId = server.CreateProduct(new Product { ... });
var shoppingCartId = server.CreateShoppingCart(userId);
var userId = server.CreateUser(new User { });
server.AssignCartToUser(userId, shoppingCartId)
server.AddProductInCart(productId, 1);
// Act
server.OrderCartContent(shoppingCartId);
// Assert
var order = server.GetLastOrder();
Assert.Equal(shoppingCartId, order.ShoppingCartId);
}
Imagine having to write a second test that ensures that the order got shipped out. It would be a whole lot of repetition to get to a basic state and then some additional assertion. Yes, you could and probably should wrap up some of the arrangement steps in helper methods but that will only save you soo much… (I ran into this exact same issue when testing a service manipulating and querying a Gremlin enabled database).
If I was to ‘hack’ this Server in an afternoon, I would typically not bother testing it and rather just implement a console application that would then play out a Scenario and I would make use of Console.WriteLine and the debugger to ensure that things are working as expected. A typical example would look just like you’d expect:
async Task Main() {
var server = CreateTestServer();
var productId = server.CreateProduct(new Product { ... });
var userId = server.CreateUser(new User { });
var shoppingCartId = server.CreateShoppingCart(userId);
server.AssignCartToUser(userId, shoppingCartId)
server.AddProductInCart(productId, 1);
var order = server.GetLastOrder();
var paymentId = server.CapturePayment(order.Id);
var payment = server.GetPayment(paymentId);
var shippingNumber = shippingService.Send(order.Id);
Console.WriteLine($"Shipped your order with number {shippingNumber}");
}
Because I have the debugger at my disposal, I can simply intercept any step and do manual assertion (that is checking if states were updated as I would have expected them to be). This console application example is an example of why behavior driven development (BDD for short) is a thing. BDD uses human readable descriptions of software user requirements. In my example, this description is implemented in C# since that is the language that I speak.
Introducing ScenarioTests
With ScenarioTests I started an experiment to see if we can combine best of all worlds, that is:
- Let me express a scenario from start to finish using a language that I’m comfortable in (in this case C#)
- Let me add assertions along the way testing the current state of that scenario
- Let me branch out (e.g. use a non-existing UserID and assert how the subject should react if that was the case)
After prototyping a few ideas, I came up with a solution that reuses what we’re already familiar with (in this case XUnit) while allowing the above 3 points to be met. As an example of our custom Stack sample introduced earlier in this post:
[Scenario]
public void Scenario(ScenarioContext scenario) {
// We create a subject as we would normally do
var subject = new Stack<int>();
// Lets define our first test case, we want to ensure that our stack starts out with a Size of 0
scenario.Fact("Starts with a size of 0", () => {
Assert.Equal(0, subject.Size);
});
// Lets progress our scenario, lets add something to the stack
subject.Push(1);
scenario.Fact("Push increased stack size by 1", () => {
Assert.Equal(1, subject.Size);
});
// Lets see if we can pop our stack
scenario.Fact("We can pop our single item and end up with an empty stack", () =>{
subject.Pop();
Assert.Equal(0, subject.Size);
});
// Lets push something else and ensure that the stack is growing accordingly
subject.Push(2);
scenario.Fact("We should now have 2 items on our stack", () => {
Assert.Equal(2, subject.Size);
});
}

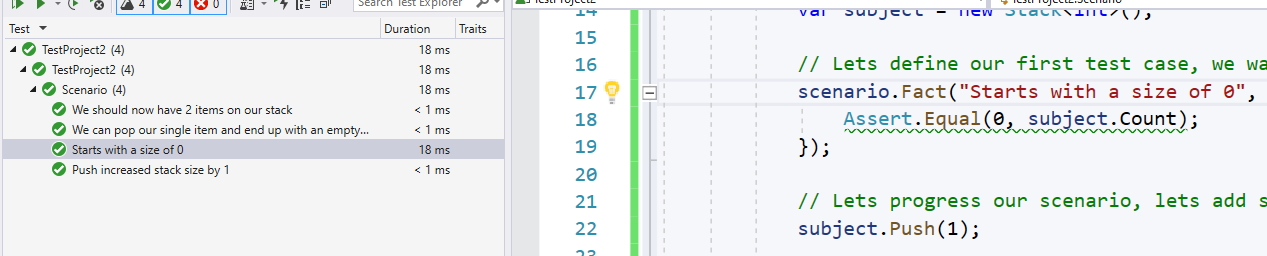

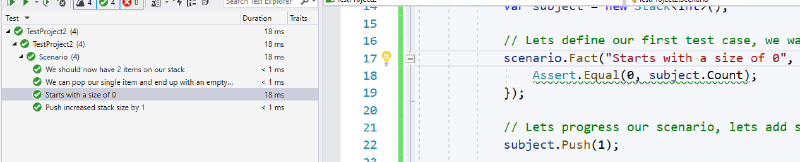

And what you would see in VS:
What happened here? We expressed a scenario that essentially creates an empty stack, pushes an item, and then pushes a second item. Along the way we were able to add tests and assert facts about our subjects state as it was at that stage in the Scenario. If you looked closely you would have seen that we actually manipulated our stack and Popped an item in one of our Tests. This however did not affect the subsequent tests in our scenario since it was encapsulated within that test. How did that work?
ScenarioTests uses a source generator to generate XUnit test methods for each invocation of Assert or Theory on the ScenarioContext that got passed in as an argument. That test method is then configured to run our Scenario while ending as soon as it hits a conclusion for that particular test. In the case of our Starts with a size of 0 test. It would end the scenario right after it was able to assert that the stack started with a size of 0.
Even if we were to throw an exception right in the middle of this Scenario, tests running before that exception will still pass. If we were to throw an exception in our first test then any other test would not be affected. Because of this logic, we can even manipulate our subject within one of our test methods as demonstrated by our Pop call in one of our tests and still have confidence that the manipulation does not affect subsequent tests.
This is all great but what about dealing with Theories. I like to describe a theory in XUnit as something that should be true for at least the input that I’ve given it. Let’s say we wanted to continue our scenario and make sure that we can push many items onto our stack while still having the count go up accordingly, we can do just that:
// Continuing from where we left off, at this stage our stack contains 2 numbers
var theoryCases = new int[] { 0, 1, 2, 4, 8, 16, 1024 };
var initialStackSize = subject.Count; // Capture what we already had in the stack
foreach (var numbersToAdd in theoryCases) {
scenario.Theory("We can add X items and still satisfy our count property", numbersToAdd, () => {
for (var i = 0; i < numbersToAdd; i++) {
subject.Push(0);
}
Assert.Equal(initialStackSize + numbersToAdd, subject.Count);
});
}

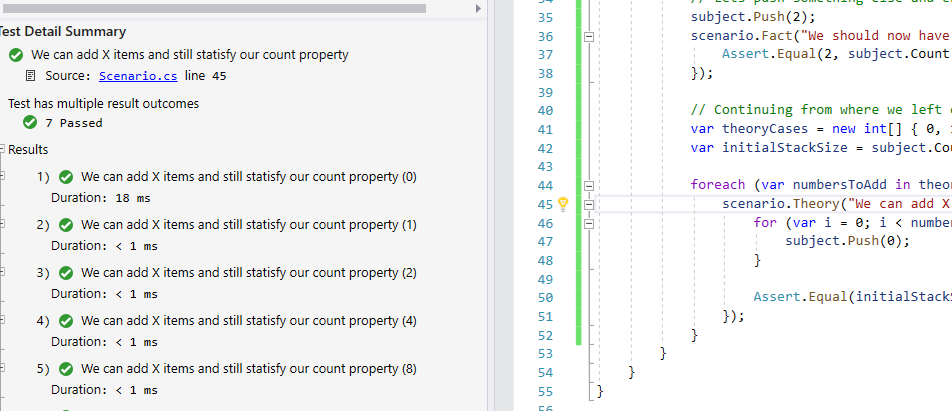

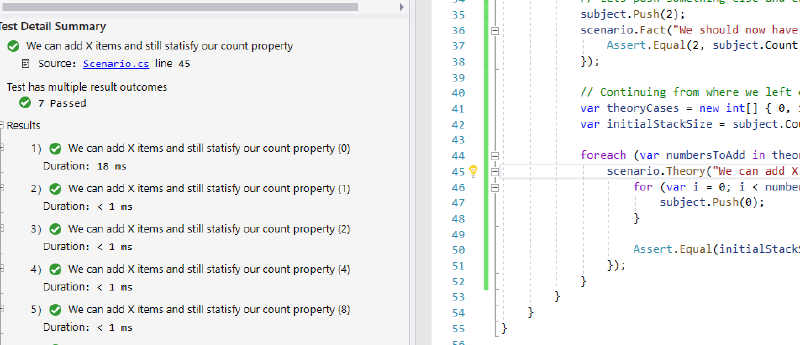

And what we would see in VS:
Again we made use of the fact that tests run in isolation. Each theory case is manipulating the state of our Stack however it does not affect or gets affected by other Theory cases. This works since the Scenario is replayed for each theory case. So what would a typical end-to-end scenario look like:
[Scenario]
void Scenario(ScenarioContext scenario) {
// Imagine that this scenario requires some docker containers
if (!DockerDetector.IsDockerAvailable) {
scenario.Skip("Docker is required for this scenario");
} else {
// Lets start our server
var server = CreateTestServer();
scenario.Fact("Server is valid", () => Assert.True(server.IsValid));
// And lets create a product
var productId = server.CreateProduct(new Product { ... });
scenario.Fact("ProductId is not null", () => Assert.NotNull(productId));
scenario.Fact("We can fetch our product", () => {
var product = await server.GetProduct(productId);
Assert.NotNull(product);
});
// We also need a sample user
var userId = server.CreateUser(new User { });
scenario.Fact("userId is not null", () => Assert.NotNull(userId));
// Skipped the rest of the implement for brevity
}
}
As expected we are able to write down our scenario in our DSL of choice which happens to be C#. We even introduced a check to see if Docker is available to us as our imaginary server would need it. We then properly skip tests if Docker is not available.
Conclusion
With ScenarioTests you can express your scenario in C# while testing along the way. ScenarioTests are currently in an experimental phase. You can find the project on Github And pull it directly from NuGet
More samples are available on Github and in a separate E2E test demo project
